AODELI Accessories Quote (HTML Table)

Request a quote for AODELI accessories and extrusions.

"*" indicates required fields

Name*
Phone number
Preferred Contact Method

Extrusions – Exterior Range:

Item Name Code Description Pack Quantity Qty
ACC0017BZ-Angle Long V2 (24.6mm) 3600mm ACC0017BUsed in Cassette Fix System for all product ranges. Height: 24.6mm Alloy/ Temper: 6060/ T5 Thickness: 1.6mm 20
ACC0018BZ-Angle Short (23.0mm) 3600mmACC0018BUsed in Cassette Fix System for all product ranges. Height: 23.0mm Alloy/ Temper: 6060/T5 Thickness: 1.6 mm20
ACC0040Z-Angle Long V2 (25.5mm) 5800mmACC0040Used in Cassette Fix System for all product ranges. Height: 25.5mm Alloy/ Temper: 6060/T5 Thickness: 1.6 mm20
ACC0041Z-Angle Short V2 (23.9mm) 5800mmACC0041Used in Cassette Fix System for all product ranges. Height: 23.9mm Alloy/ Temper: 6060/T5 Thickness: 1.6 mm20
ACC0037Standard Stiffener 5800mmACC0037Fixed to the back of aluminium panels for added stiffness and support. 19×39×2mm Alloy/ Temper: 6063/T6 Thickness: 2 mm 6
ACC0019Top Hat 16mm 5800mmACC0019Used to provide sub-framing in cladding applications. 16×90×2.5 mm width 50 mm Alloy/ Temper 6060/T56
ACC0021Top Hat 25 mm 5800mmACC0021Used to provide sub-framing 25×90×2.5 mm Alloy/ Temper: 6060/T5 Thickness: 2.5mm Width: 50mm4

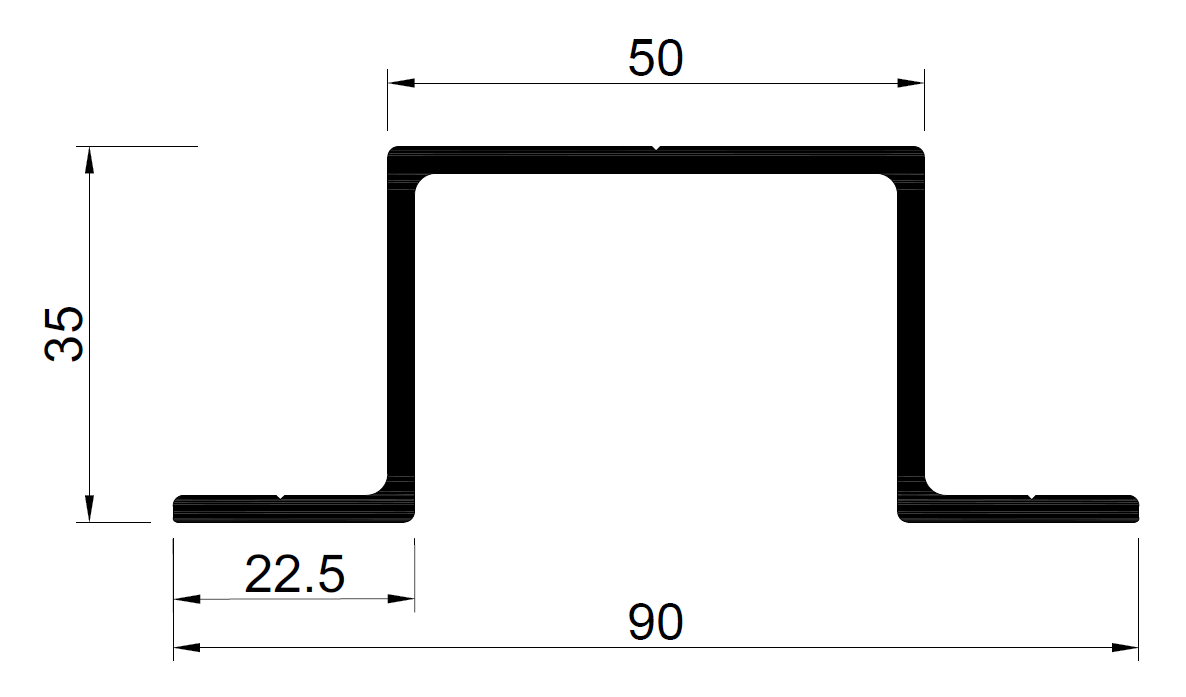

ACC0036Top Hat 35mm 5800mmACC0036Used to provide sub-framing in cladding applications. 35×90×2.5 mm Alloy/ Temper: 6060/T5 Thickness: 2.5mm Width 50 mm4

Extrusions – Interior Range

Item Name Code Description Pack Quantity Qty

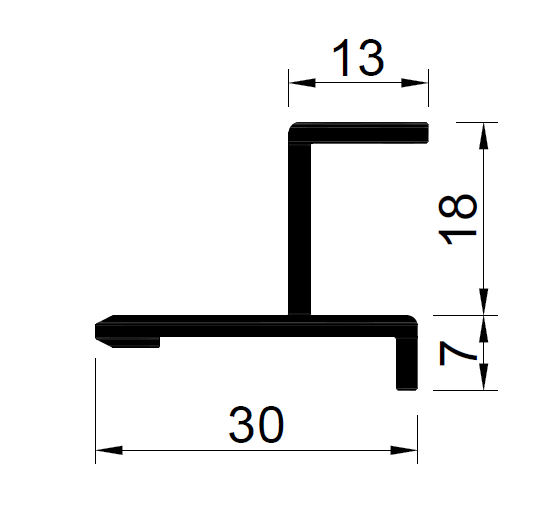

ACC0026Male Extrusion GJ02 V2 3000mmACC0026Used in Conceal Fix Systems for all AODELI products. Alloy/ Temper 6063/T5 Thickness: 2 mm10

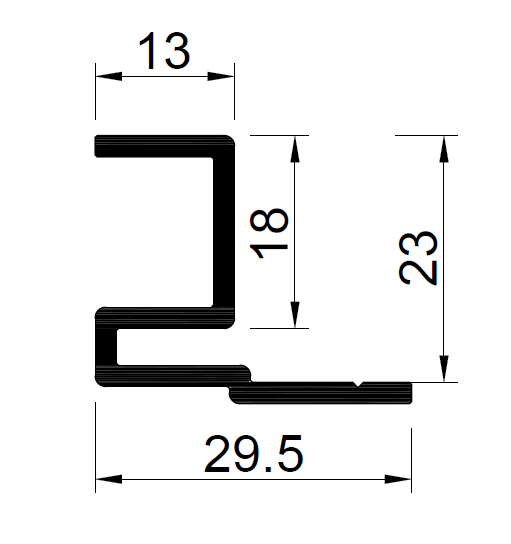

ACC0027Female Extrusion MJ03 V2 3000mmACC0027Used in Conceal Fix System for all AODELI products. Alloy/ Temper: 6063/T5 Thickness: 2mm10

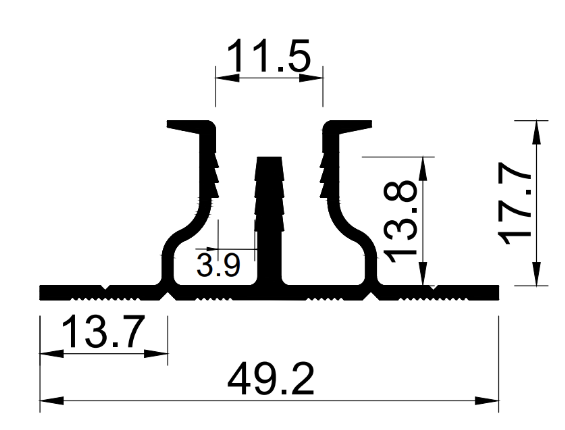

ACC0028Shadowline Intermediate Rail KJ001 V2 3000mmACC0028Used in Quick Fix System for DSP, NCP & ACP wall applications only. Alloy/ Temper: 6063/T5 Thickness: 1.2–1.5 mm10

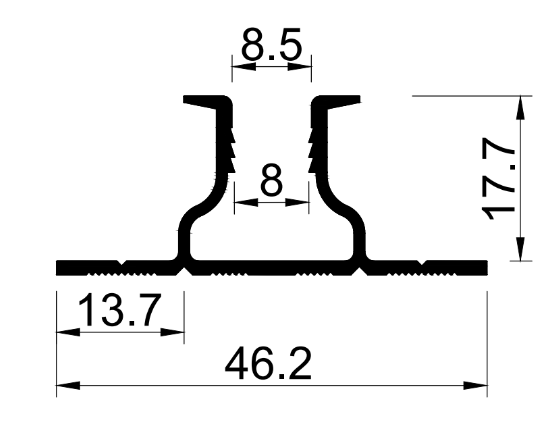

ACC0029Intermediate Rail KJ002 V2 3000mmACC0029Used in Quick Fix System for DSP, NCP & ACP wall applications only. Alloy/ Temper: 6063/T5 Thickness: 1.2–1.5 mm10

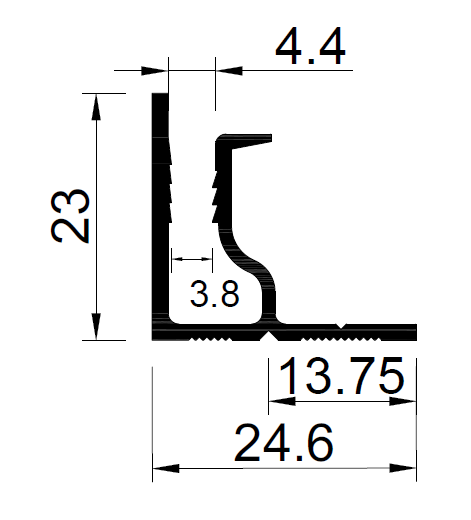

ACC0030Edge Rail KJ003 V2 3000mmACC0030Used in Quick Fix System for DSP, NCP & ACP wall applications only. Alloy/ Temper: 6063/T5 Thickness: 1.2–1.5 mm10

Caulking

Item Name Code Description Pack Quantity Qty

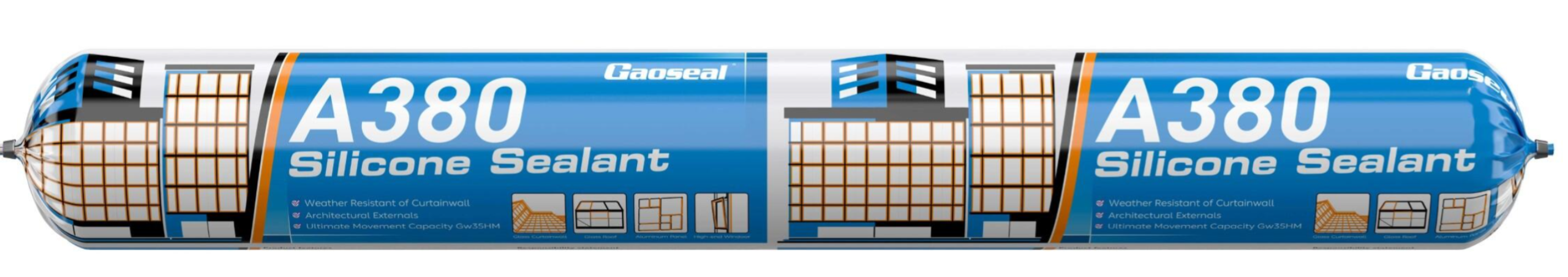

ACC0038Gaoseal A380 Silicone Black 600ml SausageACC0038For non-structural waterproof and weatherproof sealing of glass, metal, and stone curtain walls.20
ACC0039Gaoseal A380 Silicone Grey 600ml SausageACC0039For non-structural waterproof and weatherproof sealing of glass, metal, and stone curtain walls.20

3M VHB Tape

Item Name Code Description Pack Quantity Qty
ACC00463M VHB Architectural Panel Tape B90F 12mm widthACC0046A black acrylic foam tape, engineered for architectural cladding and stiffener bonding. It offers a durable alternative to structural silicone, spacer tapes, and gaskets, delivering clean aesthetics and proven performance in curtain walls, panels, and façade systems. (Updated version of VHB 4991) Thickness: 2.3mm Length: 33m / Roll18
ACC00483M VHB Architectural Panel Tape B90F 12mm widthACC0046A black acrylic foam tape, engineered for architectural cladding and stiffener bonding. It offers a durable alternative to structural silicone, spacer tapes, and gaskets, delivering clean aesthetics and proven performance in curtain walls, panels, and façade systems. (Updated version of VHB 4991) Thickness: 2.3mm Length: 33m / Roll12
ACC00493M VHB Architectural Panel Tape B90F 12mm widthACC0049A black acrylic foam tape, engineered for architectural cladding and stiffener bonding. It offers a durable alternative to structural silicone, spacer tapes, and gaskets, delivering clean aesthetics and proven performance in curtain walls, panels, and façade systems. (Updated version of VHB 4991) Thickness: 2.3mm Length: 33m / Roll9
